Barcode Analysis Tool for Packaging Artworks

The Barcode Analysis tool lets you identify and analyse various barcodes on your packaging artwork.

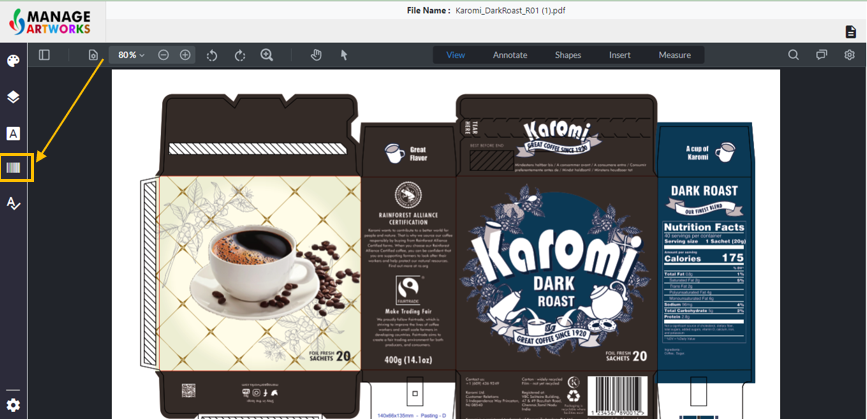

Select the Barcode inspection tool from the screen’s left panel.

To inspect your packaging artwork for barcodes' scan grade, magnification and more

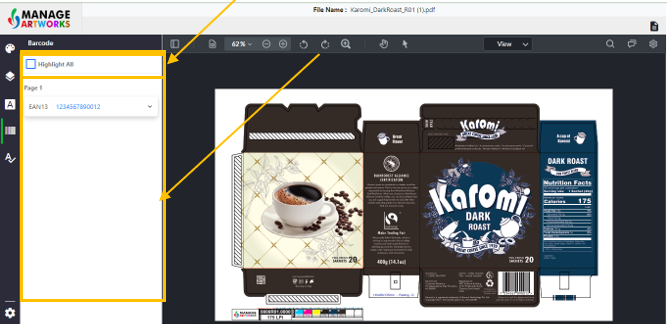

The tool will identify and analyze all barcodes on the artwork. Select the barcode you intend to analyze.

To verify the quality of barcode on your packaging artwork

On the left panel, the parameters pertaining to the barcode are listed

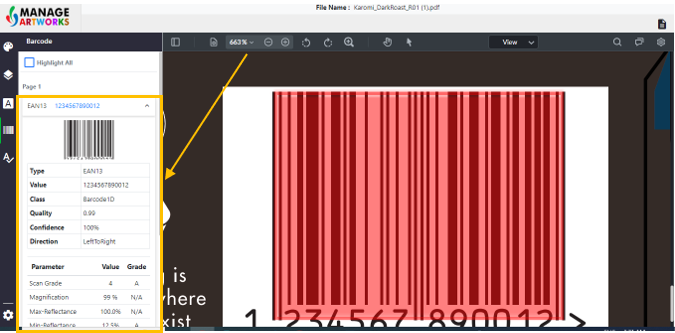

To find the scan grade, direction, type and class of the barcode on your packaging artwork

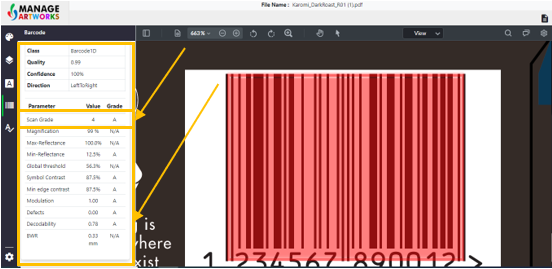

Scroll down to find the grade of the barcode. The grade is listed between A-F, depending on the parameters evaluated by the system

To analyze and measure the quality of barcode on your packaging artwork

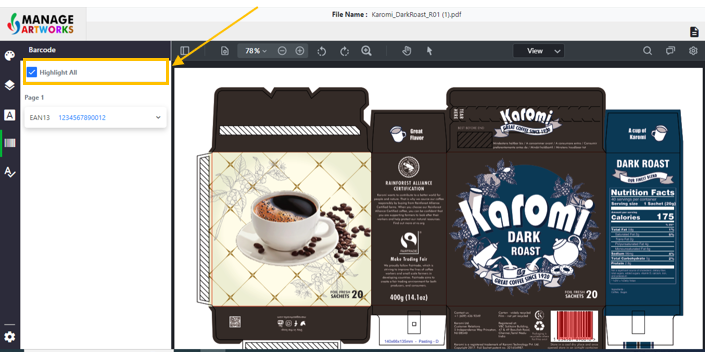

If you rather want to have an overview of the places where there is a barcode, click on ‘Highlight all’. The red highlights will make your work easier!

To verify all the barcodes on your packaging artwork at once
